Weld Studs
Widely used for a variety of attachment needs, our selection of studs offers fastening options to meet the most demanding application requirements. Most of our studs are designed to be installed with complementing equipment to optimize your manufacturing efficiency.

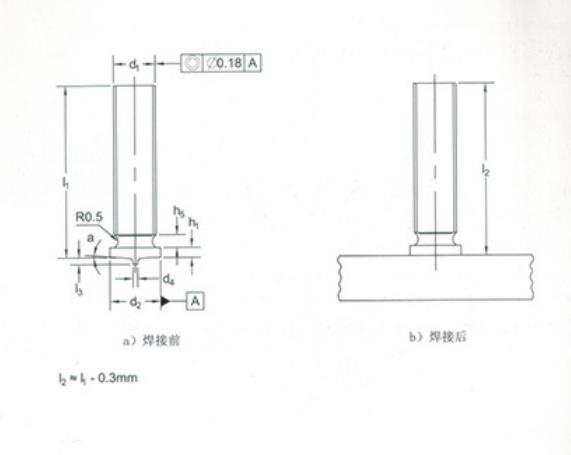

our weld studs details for reference
|
d1 |
l1 |
d2+/-0.2 |
d4+/-0.08 |
l3+/-0.05 |
Max.h5 |
h 1 |
a +/-1° |
|
M3 |
6 8 10 12 16 20 |
4.5 |
0.60 |
0.55 |
0.6 |
0.7-1.4 |
3° |
|
M4 |
8 10 12 16 20 25 |
5.5 |
0.65 |
||||
|
M5
|
10 12 16 20 25 30 |
6.5 |
0.75 |
0.8 |
1.0 |
||
|
M6 |
7.5 |
||||||
|
M8 |
12 16 20 25 30 |
9 |
0.85 |
1.5 |
0.8-1.4 |
